Product

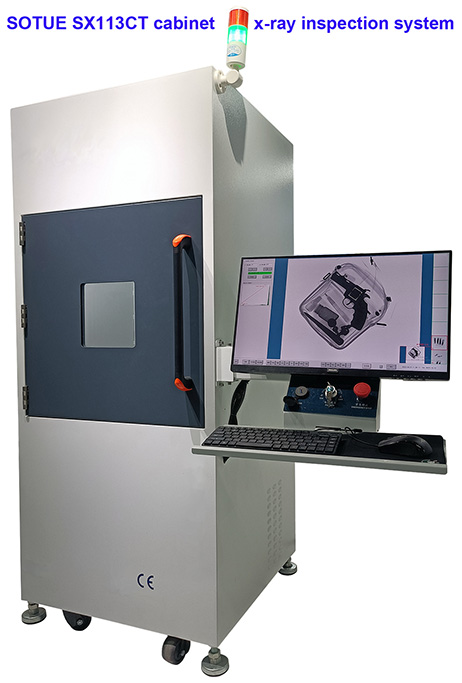

  SOTUE SX113CT cabinet type x-ray inspection mail & parcel system

Application:

Routine mail-screening of SOTUE SX113CT cabinet type x-ray inspection system is the first line of defence for security against postal hazards for you and your business. It has been widely used in postal systems, government departments, police departments etc. for security inspection.

SX113CT cabinet x-ray inspection system is compact, easy and safe to use by not technical staff and very low maintenance. Its compact design means it can be used in the small mail rooms.

Rapid Screening operation: Simply place items into its X-ray inspection chamber and a click action in the computer screen produces an almost instant clear image.

Feature:

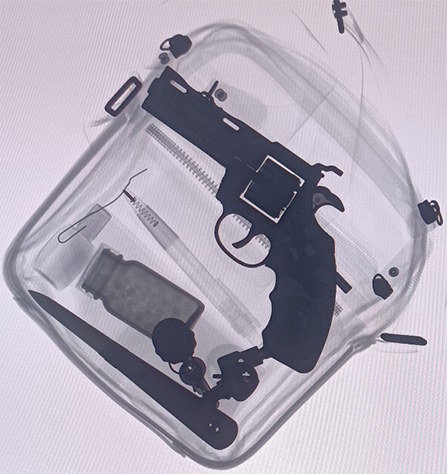

SX113CT x-ray inspection system integrates a high-definition display with advanced X-ray imaging capabilities and X-ray image enhancement software. It allows a detailed image investigation of postal threats including circuits, switches, sharp objects, organic materials or powders. Images can be stored and exported via print, e-mail, internet or corporate network.

SX113CT x-ray inspection system can generate clear and well-defined X-ray images of mails, parcels, and small package items, it enables operators to quickly distinguish between legal and malicious or prohibited items. It also has applications in the fields of evidence collection, non-destructive testing and counterfeit detection.

Technical data:
Power supply: AC 110V ~ 220V (±10%), 50/60Hz.
Dimension: 900 mm (L) x 900 mm (W) x 1780 mm (H).

Resolution: 3072 x 3072.

Inspection Chamber dimension: 660 mm (L) x 660 mm (W) x 730 mm (H).
The maximum volume of a detected object: 400 mm (L) x 400 mm (W) x 720 mm (H).

Amplification factor: 300 times
Weight: Approximately 260 kgs.
Work environment temperature: 0 ~ 40 ℃.

Monitor: 24 inch LCD monitor.
Independent industrial computer, equipped with 8GB RAM and 1T hard drive.
SSD drive with power protection. Windows 10 IOT (Internet of Things).

Operation System: Windows 10.
CPU: Intel i5.

Function:
1. Shutdown function: When shutting down, simply turn the key and no other operation is required.
2. Quick shutdown function: The quick shutdown function can be achieved via a key switch.
3. Network upload function: It can transmit images obtained via X-ray imaging to the client.

4. Statistical function: The cumulative number of items tested during its startup and the cumulative number of items tested after leaving the factory can be query via the display screen.
5. Optional Alarm display function: This system can install its alarm device which can alert suspicious objects.

Technical standards:
1. Conform to EN60950-1:2006+A12:2011+A2:2013 product safety international standard.
2. Conform to EN61010-1: 2010 international security standard. Conform to EN55011: 2016 product safety international standard.
3. Have European CE and EMC international safety standard certificates.
